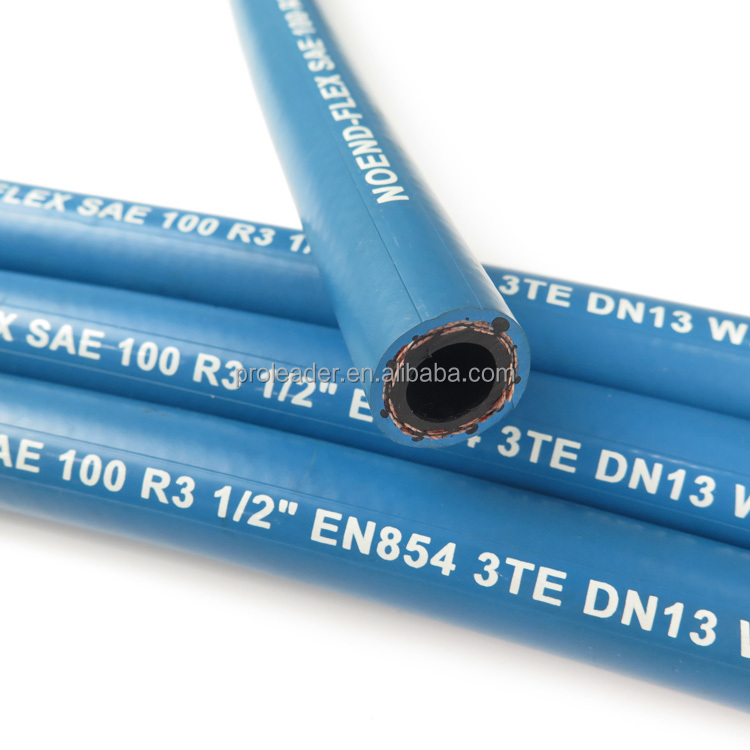

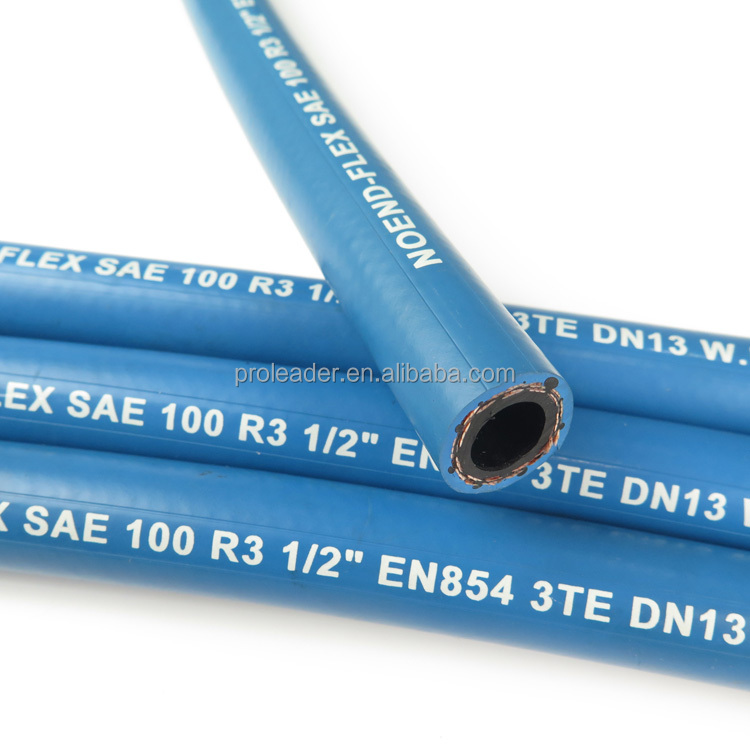

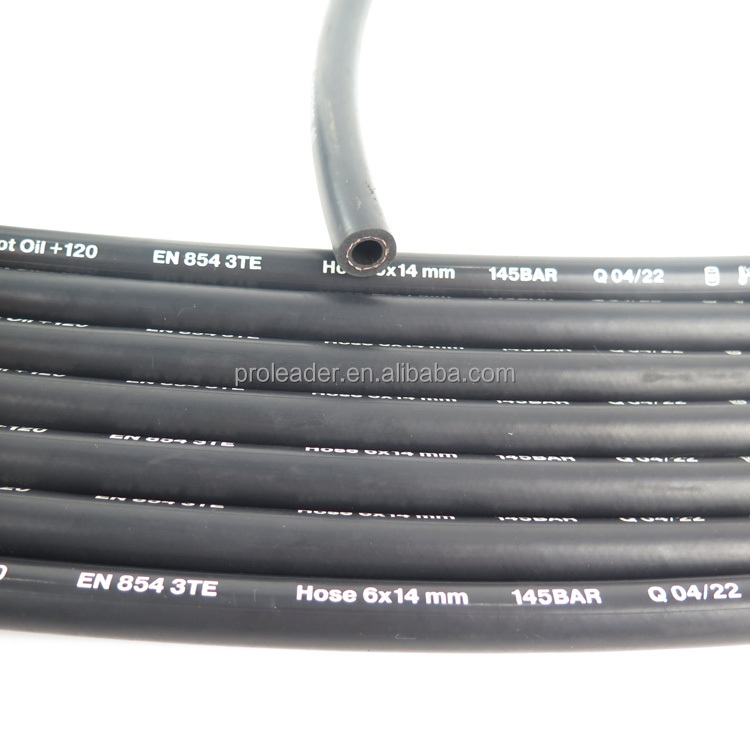

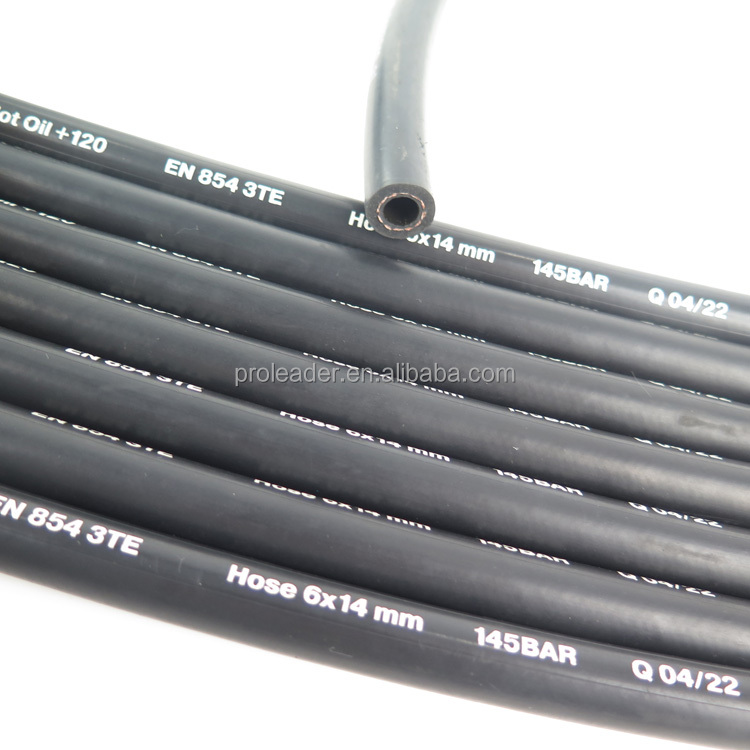

SAE 100 R3 Medium Pressure EN 854 3TE Two Textile Yarn Reinforcement Oil Fuel NBR Rubber Air Water Gas Hose Tube With Fittings

1 / 5

SAE 100 R3 Medium Pressure EN 854 3TE Two Textile Yarn Reinforcement Oil Fuel NBR Rubber Air Water Gas Hose Tube With Fittings

Send Inquiry

Product Description

SAE 100 R3 Medium Pressure EN 854 3TE Two Textile Yarn Reinforcement Oil Fuel NBR Rubber Air Water Gas Hose Tube with Fittings

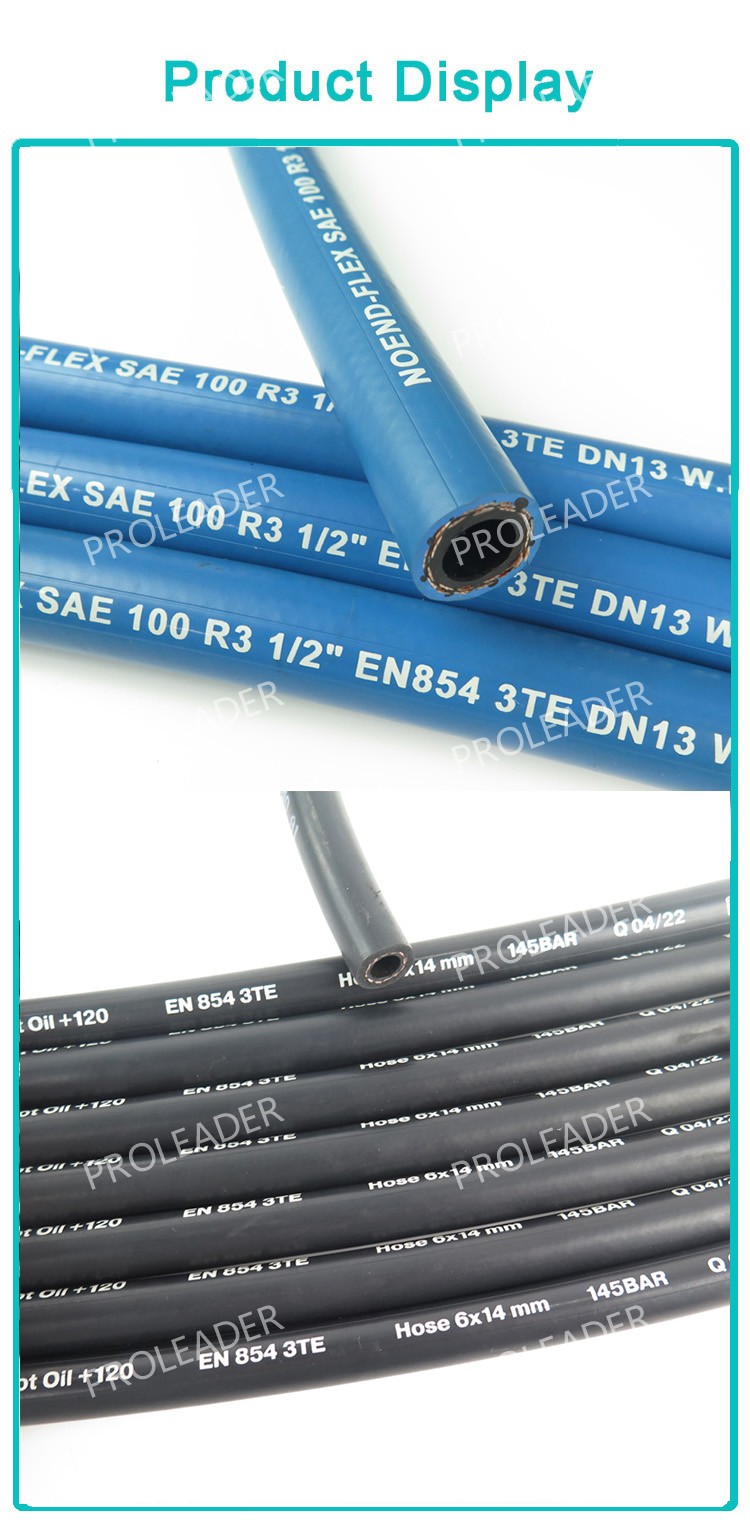

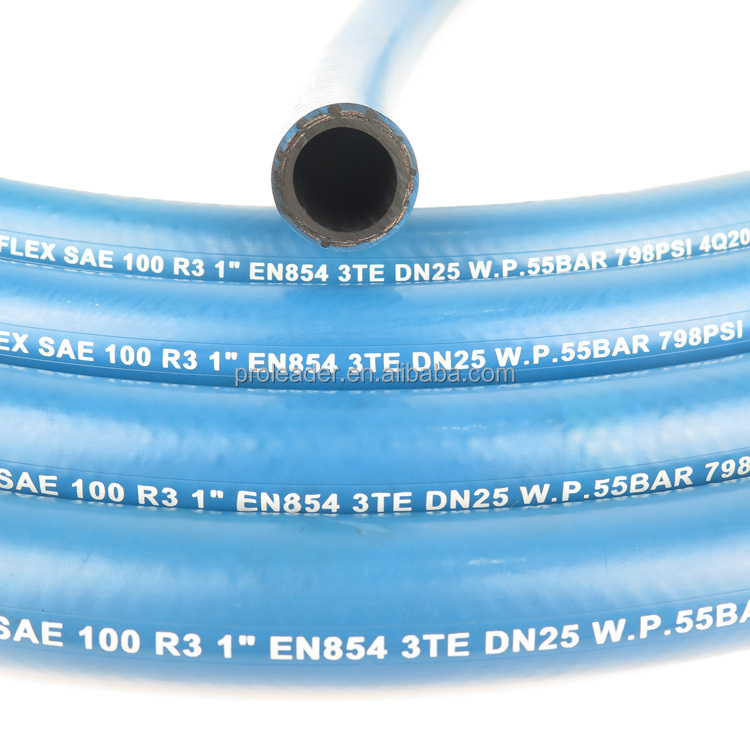

SAE 100 R3 / EN 854 3TE Textile Braided Hose

⚙️Tube: NBR (Nitrile Butadiene Rubber)

🛡️Reinforcement: Two layer textile braid

🌑Cover: Weather and oil resistant CR (Chloroprene Rubber)

🚀Application: Suitable for use with petroleum-based hydraulic fluids

🌡️Temperature Range: -40°C ~ +100°C

🎨Appearance: Smooth or wrapped; Color: Black or multiple colors

SIZE I.D			O.D	W.P		B.P		B.R	L	W.T
dash	inch	mm	mm	bar	psi	bar	psi	mm	m	kg/m
-3	3/16"	4.8	12.5	160	2300	640	9200	40	50-100	0.15
-4	1/4"	6.3	14.5	145	2100	580	8400	45	50-100	0.16
-5	5/16"	7.9	16.8	130	1900	520	7600	55	50-100	0.19
-6	3/8"	9.5	18.6	110	1600	440	6400	70	50-100	0.24
-8	1/2"	12.7	22.5	93	1350	372	5400	85	50-100	0.32
-10	5/8"	15.9	26.2	80	1150	320	4600	105	50-100	0.39
-12	3/4"	19.1	29.5	70	1000	280	4000	130	50	0.52
-14	7/8"	22.2	32.8	62.5	910	250	3640	140	50	0.59
-16	1"	25.4	36.0	55	800	220	3200	150	50	0.66
-18	1.1/8"	28.6	40.0	50	725	200	2900	170	60	0.86
-20	1.1/4"	31.8	43.5	45	650	180	2600	190	60	1.05
-24	1.1/2"	38.1	50.3	40	580	160	2320	240	60	1.25
-28	1.13/16"	45.0	57.0	36	530	146	2120	270	60	1.45
-32	2"	50.8	63.8	33	480	132	1920	300	60	1.65

Frequently Asked Questions

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
